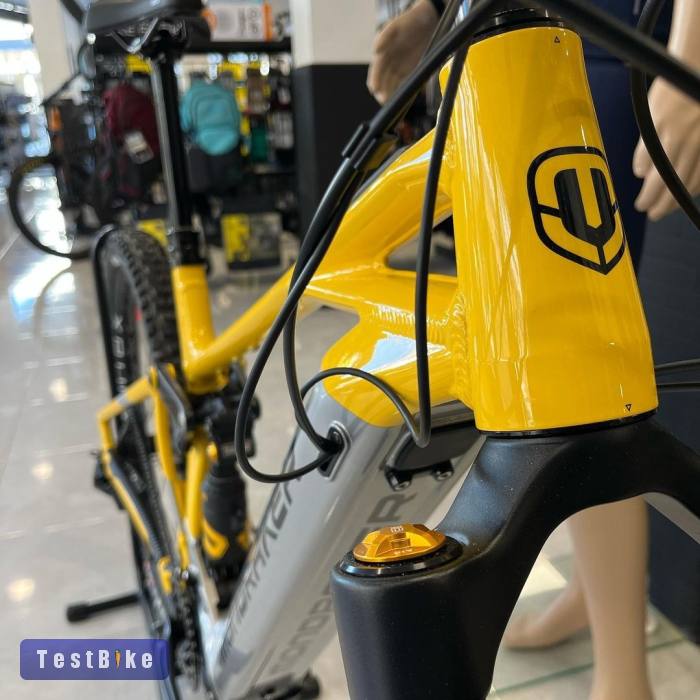

Framework
Crafty Stealth Evo 6061 Aluminum, E-Bike Optimized Zero Suspension System, 150mm Travel, Forward Geometry, Non-Removable Internal Battery, Boost 12x148mm Rear Axle, Tapered Head Tube, Monoblock One-Piece Upper Link , HHG internal cable routing, MAX capacity sealed bearings, oversized 17mm axles, speed sensor integrated into the dropout of the frame, exclusive plastic engine covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm

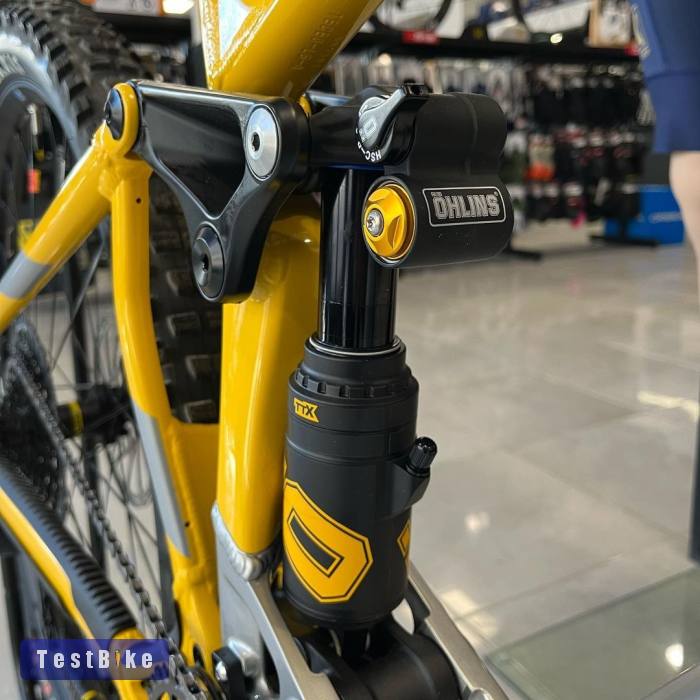

Rear shock absorber
Ohlins TTX Air 205x65mm. Settings: High-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, bottom rings 25 x 10 mm
Suspension adjustment
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

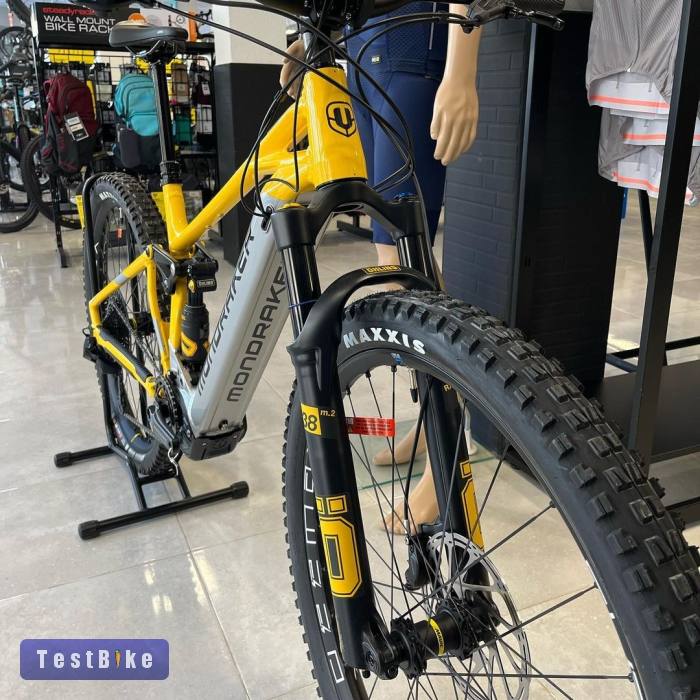

Fork
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer, Boost 15x110mm axle, offset 44mm. Settings: High-speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp tube
Headset
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
ONOFF Sulfur FG 30mm 0º, forged 6061 aluminum alloy, 31.8mm bore
Hanger
ONOFF Sulfur 1.0, double butted 6061 aluminium, curve: 20 mm, width: 800 mm, bend 9°, rise 5°, bore 31.8 mm
Handles
ONOFF Desert, single lockout, 135mm
Saddle stem
ONOFF Pija internal dropper post, diameter 31.6 mm, size S: 405 x 95-125 mm, size M: 458 x 120-150 mm, size L: 498 x 140-170 mm, size XL: 498 x 140 -170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, sintered metal over steel pads
Rear brake
Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6-bolt one-piece rotor, sintered metal over steel pads

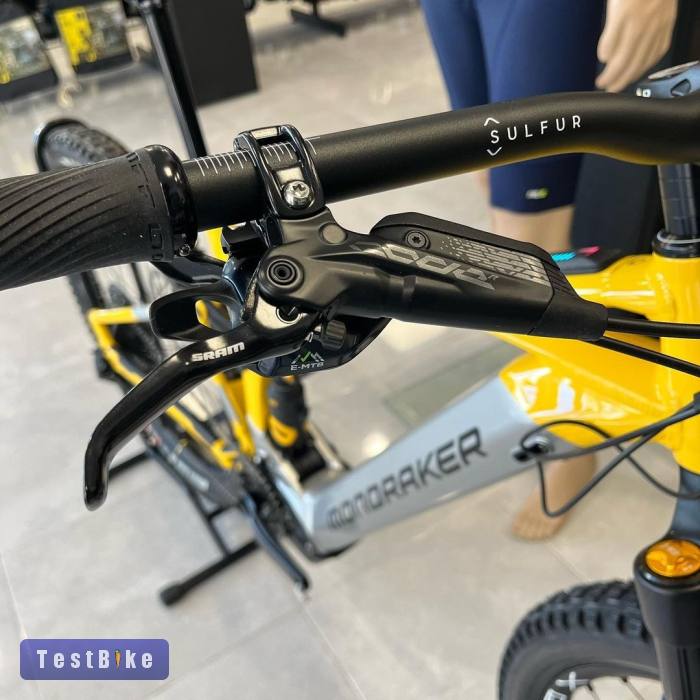

brake lever
Sram Code R, tool-free reach adjustment
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, Tubeless, 28 spokes
Spokes
Mavic straight double butted, non-contact lacing
front hub
Mavic , Boost 15 x 110 mm, IS 6 holes
rear hub
Mavic , Boost 12 x 148 mm, ID360 ratchet system, IS 6 bolts, XD freewheel
Front tire
Maxxis Minion DHF 29x2.6, Tubeless Ready, 3C MAXX TERRA compound, EXO+ protection, 120 TPI, folding bead
rear tire
Maxxis Minion DHR II 29x2.6, Tubeless Ready, 3C MAXX TERRA compound, EXO+ protection, 120 TPI, folding bead
Crank
Race Face Aeffect ebike, 165mm
Trays
Sram X-Sync 2 Eagle 34t, steel, narrow width, BCD 104
Chain
Sram NX Eagle, 12 speed, Powerlock
Rear derailleur
Sram GX Eagle, Roller Bearing Clutch type 3, cage lock technology, 1x12, X-Actuation 1:1
Gear shift levers
Sram Trigger GX Eagle, 12-speed, X-Actuation 1:1, single click
Cassette
Sram XG-1275, 10-52T, 12 speed
derailleur hanger
SRAM UDH
Weight
25.0kg

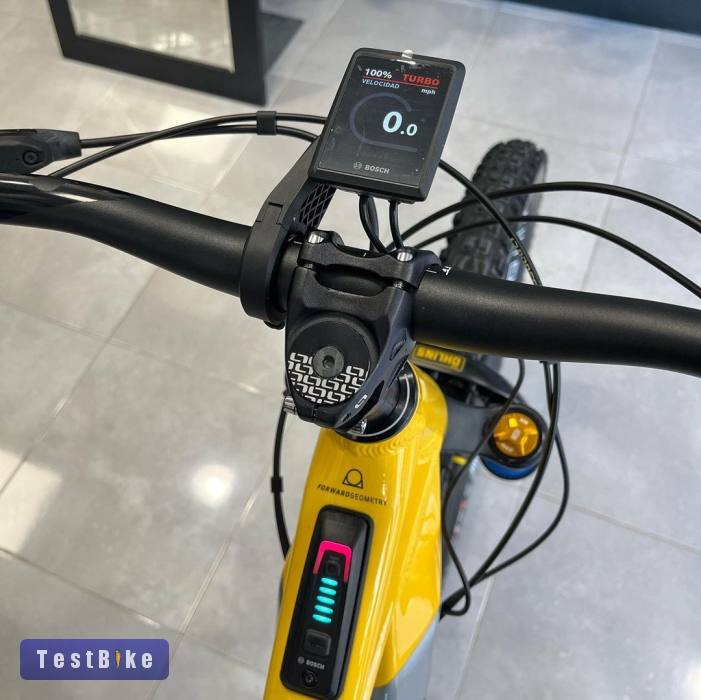

screen
Bosch Kiox 300 / Bosch Bosch controller
Engine
Bosch Performance Line CX (25km/h) Smart System
Battery
Bosch Powertube 750 Wh
Color reference
Yellow - Silver
