Fork
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Bottom Bracket
Praxis, T47 threaded, internal bearing
Saddle
Size: 47, 50, 52, Bontrager Aeolus P2 Elite, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Aeolus Elite, austenite rails, 145mm width
Seatpost
Size: 47, 50, 52, 54, Madone aero carbon seatpost, 0mm offset, short length; Size: 56, 58, 60, 62, Madone aero carbon seatpost, 0mm offset, long length
Type: Rigid

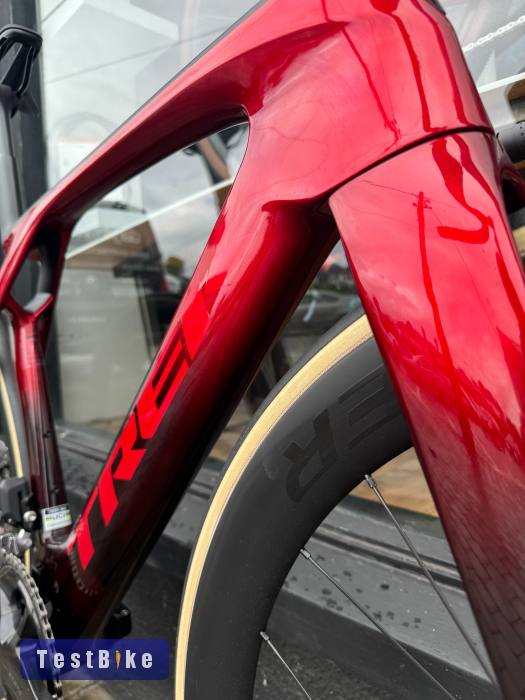

Frame
800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
BB Standard: T47, Threaded
Tire Clearance: 32c
Colors: Deep Smoke; Azure; Axinite Flip / Trek Black; Viper Red; Metallic Red Smoke to Red Carbon Smoke
Groupset

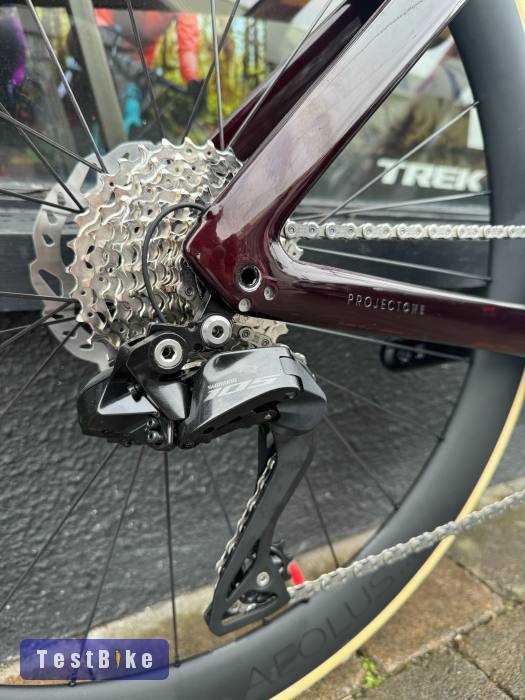

Rear Derailleur
Shimano R7150 Di2, 36T max cog
Front Derailleur
Shimano 105 R7150 Di2, braze-on, down swing

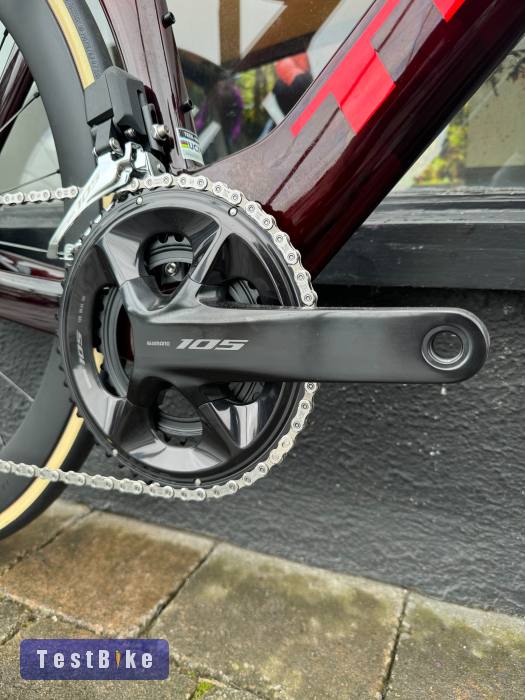

Crank
Size: 47, Shimano 105 R7100, 50/34, 165mm length; Size: 50, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, 58, Shimano 105 R7100, 50/34, 172.5mm length; Size: 60, 62, Shimano 105 R7100, 50/34, 175mm length

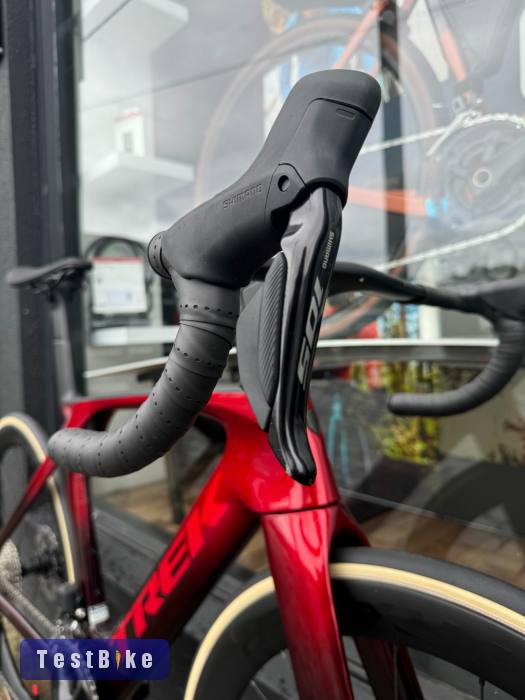

Shifters
Shimano 105 R7170 Di2, 12 speed
Cassette
Shimano 105 7100, 11-34, 12 speed
Chain
Shimano SLX M7100, 12 speed
Brakes
Shimano 105 hydraulic disc, flat mount
Type: Shimano 105 Hydraulic Disc
Wheels
Rims
Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle
Tires
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm
Disc Rotors
Shimano RT70, centerlock, 160mm
